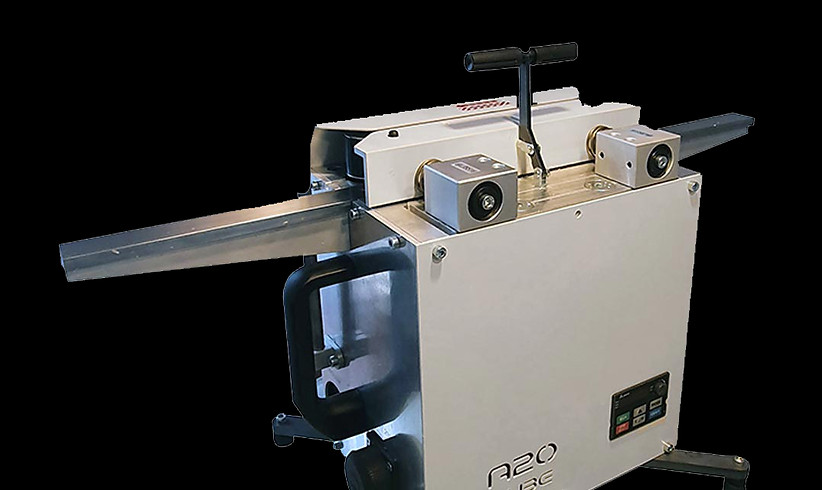

Euracryl A20 C4 Cube Portable Edge Finisher

Rotate

ADJUSTMENT OF MATERIAL THICKNESS

The thickness of the material is adjusted
conveniently up to 26 mm (1 inch) and without using force by pressing the tension lever.

MOBILE USE

The machine is compact and light. What allows a fast
location. However, it is robust enough to ensure
optimum part finish at all times.

VERSATILITY AND FLEXIBILITY

The EURACRYL A20 C4 model can be equipped with various extensions to enable convenient processing of different material formats. These can also be added later.

ALUMINUM HOUSING

The compact design of the machine is only possible thanks to a very
compact electrical concept. To prevent the machine from overheating, the
entire machine housing is made of heat dissipating aluminum with additional vents.

MILLING / POLISHING TOOLS

A selection of 22 standard tools allows the processing of plastics (PMMA, PC, PET-G, SAN, etc.) or composite materials (PMMA with aluminum or paper). As well as the production of high gloss, shiny or satin finished surfaces. With the tools of the type HIGH SPEED you can increase the feed rate up to 200%.

TECHNICAL DATA

Material thickness (0.04” … 1.02”)

Material length / with accessories (mm)2" … 31.5 / … 48" with extenstions

Milling motor power (kW)0,8

Feed motor power (kW)0,3

Weight (lbs) 48.5

Feed speed (in / min)0.1 … 5"

Spindle turn speed (rpm)0 … 18.000

Milling depth (in) .02"

Elec. Connection (V / Hz)230 V / 50-60 Hz
120v possible with step up
voltage converter.

Connection diameter chip extraction (mm)32

Total power (kW)1,1

Tool includede / Number of edgesHigh Gloss / 2
