CNC CONTROL
CNC control with touchscreen (Euracryl Polisher).
Material library with recommendations for cutting
values and tool selection.
Extensive database with information about tool
properties, material types and finish options.
MACHINE CORE AND FRONT REFERENCE BAR
The core of the machine is made of UHPC
(technical concrete), which gives the machine extreme
rigidity and absorbs vibrations up to 95%.
The front reference bar has anchor points that
keep it stably in place.
If necessary, these points can be readjusted to
ensure a constant depth of cut.
MILLING/POLISHING UNIT
CNC-controlled milling/polishing unit. Automatic adjustment of the tilting value and milling depth as well as the position of the clamping bridge. Tilting ranges from 0 ° to + 63 °. Anti streaking system.
MULTI FUNCTION TABLE
The table design reduces the formation of
streaks on the milled and polished workpiece surface.
It is equipped with anchor points that can be used
for fixing additional lateral stops or custom devices.

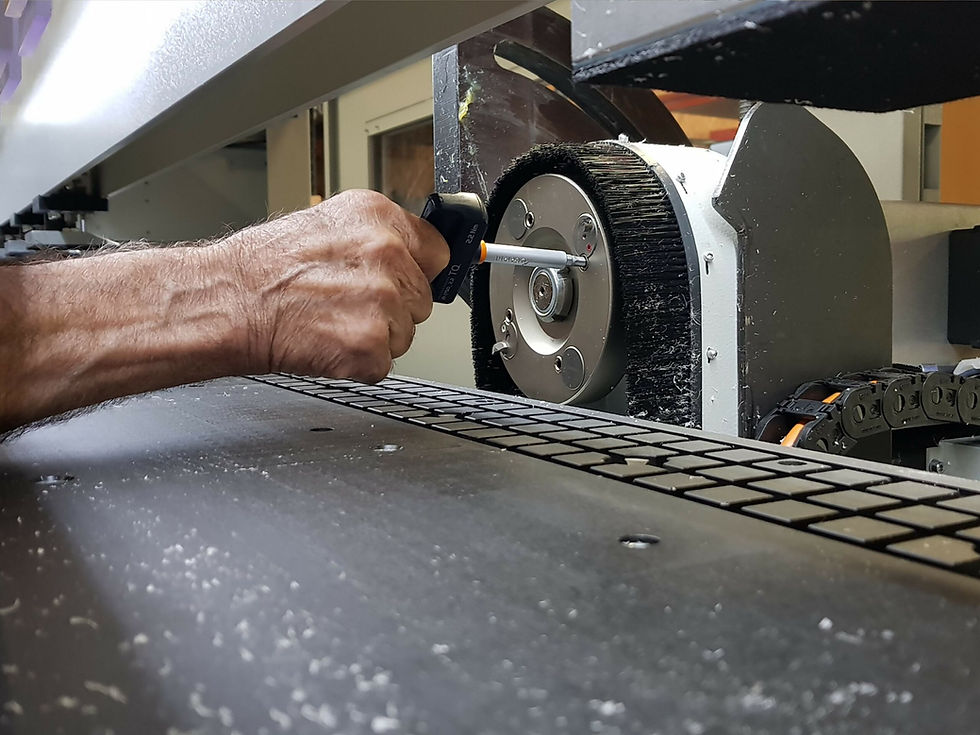

TOOLS
The machine is delivered with a milling / polishing
head types EURACRYL ES for 4 cutters.
It can be used to produce glossy or satin surfaces on
PMMA, PC, PETG, SAN, etc. as well as mixed materials PMMA
with paper or aluminum.
WORK AREA
The work area is illuminated and saved by a transparent safety curtain.

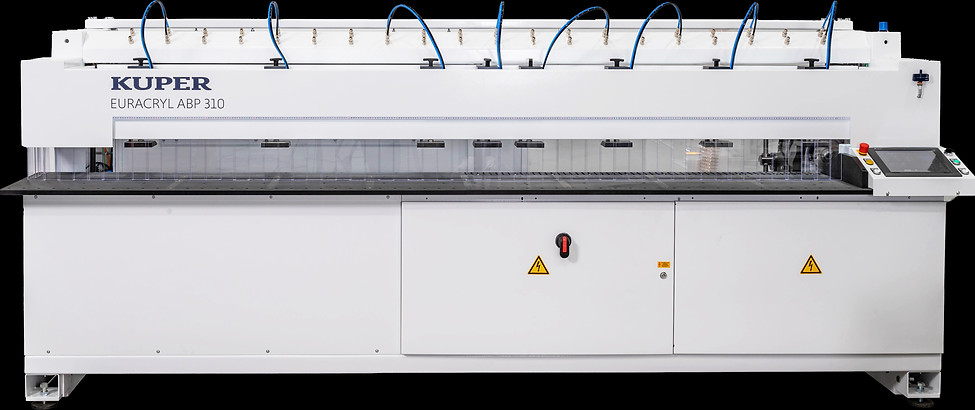

Kuper Euracryl ABP 310
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
TECHNICAL DATA
Thickness of piece at 0 ° (in)
0.08 … 4.72"
Thickness of piece at 45 ° (in)
0.08 … 3.35
Workpiece length (in)
20 … 122" (overhang up to 244"
Maximum length turning piece (in)
244"
Tilt range (°)
-3° … +63°
Milling spindle power (kW)
4,5
Power of feed motor (kW)
1,2
No of clamps
6 included (max. 20)
No of lateral stops
1 (8)
Ionizer
Not Included
Vacuum table system
Included
Machine length (in)
155"
Machine width (in)
148"
Machine height (in)
64"
Work table height (in)
36.5
Weight (lbs)
4,188
Feed speed (in/min)
3.94 … 196.85"
Return speed (in/min)
1968.5
Cutting speed (rpm)
6.000 … 12.000
Milling depth (mm)
0.002 … 0.059
Milling depth at 45 ° (in)
0.002 … 0.197 (per step)
Air pressure
6
Voltage / Frequency (V / Hz)
230 VAC, 208, 3 Ph // 380 VAC 3Ph+N// 50 /60 HzVacuum cleaner interface diameter (mm)
80
Total power (kW)
5,0
