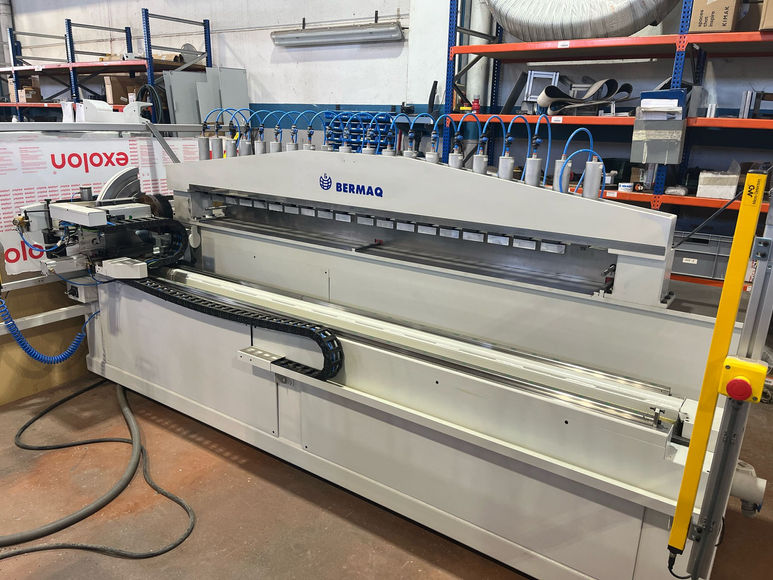

Need precision parts? look no further... This machine was built to make precision exact parts. This customized machine does is custom built to make exact parts by using a paralex referencing unit.

This machine is only to polish pieces at 90º (straight edges).

 Stabilized structural steel bench
 20 clamps
 Tool cabinet
 High accuracy guides
 Electronically adjustable depth by reference screen
 Ground steel table
 CE safety regulations
 LCD touch screen 10.4"
 Machining automation
 Length pieces’ programmer (OFFSET)
 Recipe library of pieces
 Easy-to-use intuitive software
 Router for teleservice option (internet connection required)
 Buffing System (patented by BERMAQ)

TECHNICAL SPECIFICATIONS:

Maximum workpieec length 2.100 mm (two sections of

1.050 mm each)

Maximum workpiece width 310mm

Maximum workpiece thickness 120mm (90º)

CNC control 10,4” (touchscreen color)

Max. depth of cut 4mm

Milling RPM 5.000RPM / 12.000RPM

Milling speed 0 - 10 m(min

No-load speed 0 - 20 m/min

Air pressure 6 bar

Suction Diameter 80mm

Standard clamps 20

Max. Max 1.850 kg

Total power 8,5 kW

Voltage 400V III+N | 230V III

(50Hz/60Hz)
